The super quiet pump now comes free with every AUTOTERM heater kit and installation. (SAVES YOU £99)

Youtube video – CLICK HERE

Please note, this kit does not come with ducting, vents or a mounting bracket.

2kW AUTOTERM Air 2D Diesel heater kit (Previously PLANAR 2D)

Autoterm water and air heaters are built to ISO 9001-2015 standards. They also have E2 R10 and E2 R122 approval for whole vehicle approval for use in road vehicles.

Technical parameters:

Heating power: 2 kW

Fuel: Diesel

Voltage: 12V / 24V

Heated air volume: low 34 m3/h – high 86 m3/h

Power Consumption: low 10w – high 29w

Fuel consumption: low 0.10 l/h – 0.24l/h

Weight: 2.9kg

Heater dimensions: 310mm x 119mm x 145mm

Application: Vans, Campers, Trucks, Off-Highway, Boats/Yachts

Control unit with High Altitude Sensor

Included in the kit

AUTOTERM Air 2D is the most compact diesel-powered air heater from Air series.

The heater unit uses fresh air from outside or from a well-ventilated room, then heats it up quickly, thus providing comfort and warmth in low temperature environments.

The heater’s maximum power output is 2 kW and it is capable of heating up 86 m3 space hourly, and maintaining your desired temperature.

With its compact design, AUTOTERM Air 2D can be easily installed or retrofitted in almost any land vehicle, marine transport vehicle and is supplied with a full installation kit, whether you choose the 12V or the 24V DC version.

Already reasonably priced, the AUTOTERM Air 2D maintains its low cost further due to its excellent fuel economy (even at maximum power), consuming only 0.24 litres of diesel fuel per hour.

All AUTOTERM Air series heaters are equipped with brushless induction motors that ensure low noise levels as well as a long lifetime for the device and the capability to operate in extreme environments and temperatures as low as -45°C/-49°F.

AUTOTERM Air heaters can be controlled with various control panels or remotely via your iOS or Android smartphone (remote control modem sold separately).

w

This is a great product for those who need to additionally heat small truck cabins, commercial vehicle cabins and cargo compartments, small campers, off-highway vehicles or boats of up to 33 ft/10 m.

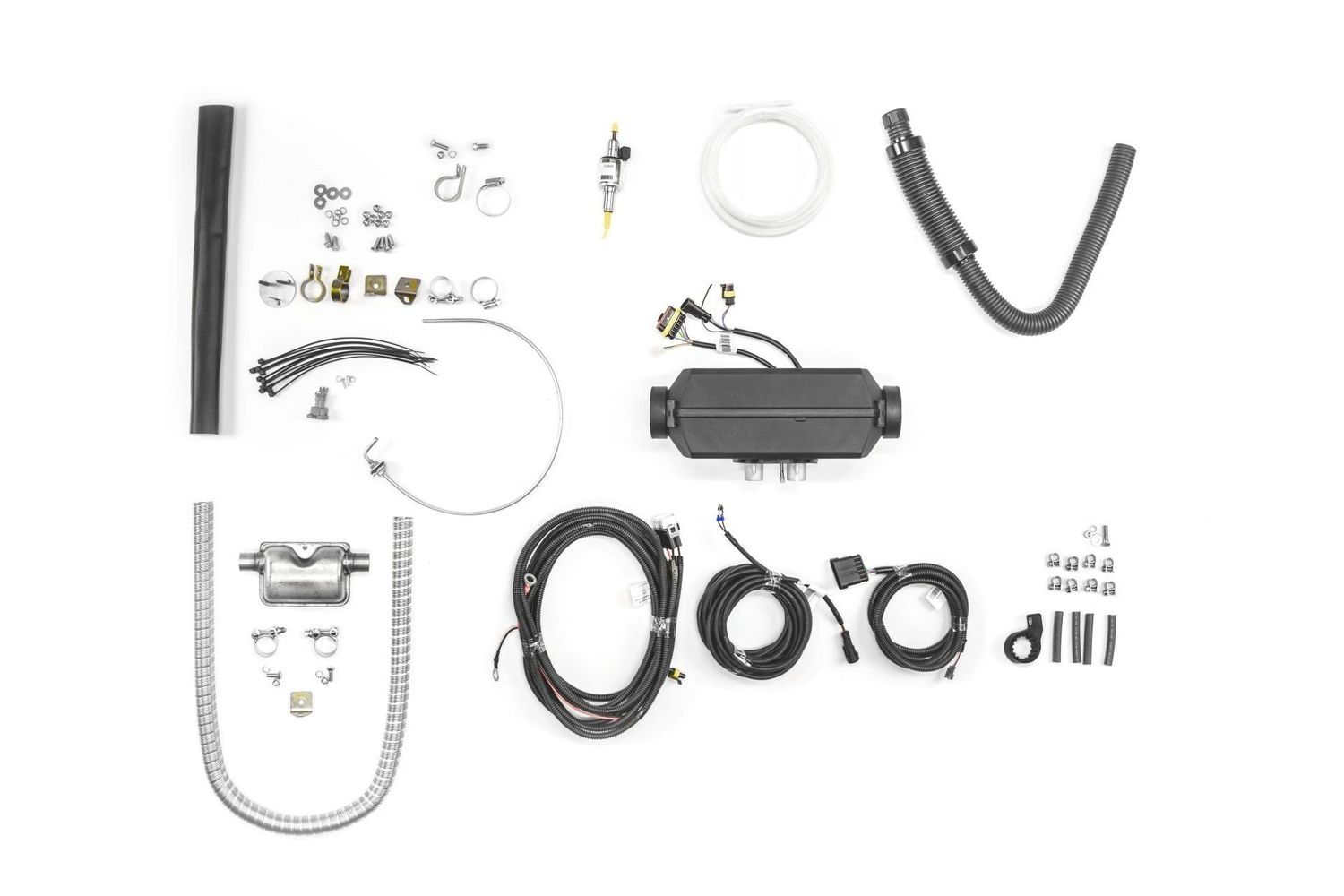

Included in the kit

• Fuel pump with mounting bracket
• 1 meter of exhaust with silencer
• 1 fuel dip fuel tube and fuel line
• 1 power cable with integral fuse box
• 1 control panel cable
• 1 fuel pump power cable
• A silencer air intake
• 1 exhaust heat lagging
• A selection of nuts and bolts.

Click here for manuals and certificates.

Photos are representative and parts may be replaced with an equivalent at anytime.
